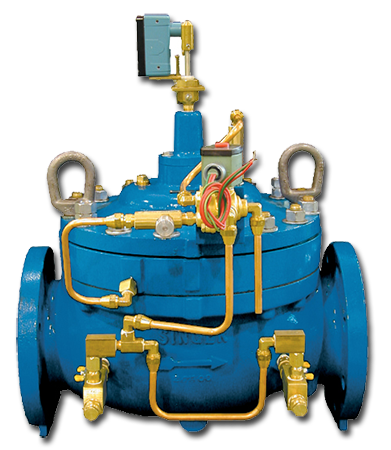

MODELS 106-BPC/206-BPC

BOOSTER PUMP CONTROL VALVE – DOUBLE CHAMBER

KEY FEATURES

• Suitable for most pumping applications including suction
   lift and low differential head
• Prevents pump starting and stopping surges
• Built-in non-slam mechanical check reduces surges on
   loss of power
• Separate opening and closing speed controls

How May We Assist You?

*
*
*
*

  1. PRODUCT OVERVIEW

    106 / 206-BPC Booster Pump Control Valve – Double Chamber

    The 106-BPC and 206-BPC booster pump control valves are installed in-line, directly downstream of the pump discharge.

    The pump control valve is normally closed and on pump start-up, a pilot solenoid is energized to open the valve, at a rate governed by the opening speed control. When shut-down is required the pilot solenoid on the valve is de-energized to commence closing. The pump is kept running while the valve slowly closes. When the valve is almost fully closed and flow is virtually zero, a stem mounted cam triggers the limit switch to stop the pump.

    In the event of a power failure, the built-in mechanical drop check closes immediately when the flow stops, independently of the valve position. Surges are minimized by closing the valve before reverse flow occurs.

  2. DOWNLOADS

    106 / 206-BPC Booster Pump Control Valve – Double Chamber

    For more information on the 106 / 206-BPC Booster Pump Contol Valve:

    Download the 106/206 BPC Product Guide

    Download the 106/206 BPC Operation Guide
