MODEL 206-PGM/S206-PGM
INTEGRAL BACK-UP, DUAL DIAPHRAGM, HYDRAULICALLY ACTUATED VALVE
KEY FEATURES
• Ideal for applications requiring redundant and back-up security
• Virtually uninterrupted control under a variety of system failures
• Remote annunciation option available
• Available in globe and angle style
-
PRODUCT OVERVIEW

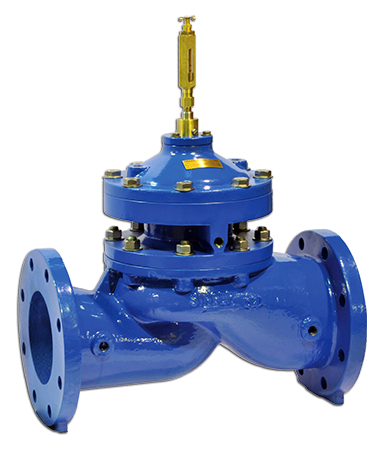

206/S206-PGM Reduced Port, Integral Back-Up, Dual Diaphragm, Automatic Control Valve
The 206-PGM and S206-PGM control valves are designed for particularly sensitive applications or situations where valves are difficult to access and maintain.
The PGM series control valves provide integral back-up control and the ability to signal should the desired function move off limits. It can also provide an independent and very positive override.
It is a variation of the standard single chamber 106-PG valve with modifications that add the following features:
-
Back-up diaphragm
-
Completely self-contained
-
Modulating or emergency close back-up
-
Back-up components kept out of the main stream until required
-
Extremely positive shut-off
-
Emergency close for security breach or earthquake
The PGM series control valves may be combined with additional Singer Valve specific accessories to add further customization such as:
-
Back-up pilot system
-
Annunciation with a Single Pole Double Throw Limit Switch
Refer to Main Valve Options and Pilots & Accessories to customize the valve to suit specific applications.
-
-
