MODELS 106-EF-8837BX/206-EF-8837BX

EXCESS FLOW (BURST CONTROL) VALVE

KEY FEATURES

• Tight shut-off when flow exceeds a pre-determined amount
• Manual re-activation required after failure
• “Failure Signal” options available

How May We Assist You?

*
*
*
*

  1. PRODUCT OVERVIEW

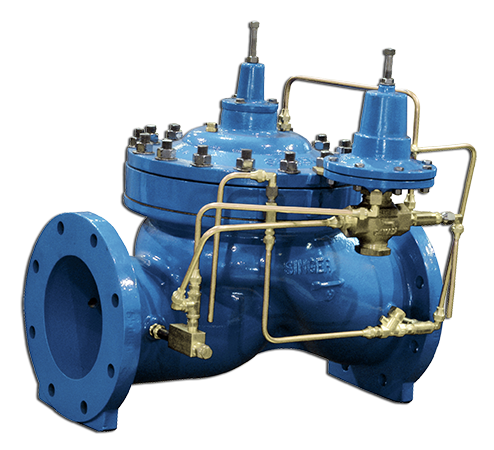

    106/206-EF-8837BX Excess Flow (Burst Control) Valve

    The 106-EF-8837BX and 206-EF-8837BX excess flow valves are based on the 106-PT and 206-PT Double Chamber main valves. The valve is designed to shut-off tightly when flow exceeds a predetermined amount.

    The 625-RPD pilot senses the pressure drop of the valve and closes the valve when the tripping flow is reached. Typical pressure drop at tripping is 5 psi / 0.35 bar.

    Tripping flow is adjusted by limiting the valve opening with the X102 Stroke Limiter. 10 psi / 0.7 bar inlet pressure must be maintained at the valve inlet when the valve has tripped to prevent self re-setting. This valve closes fast and from a significant velocity. If the upstream pipe is longer than 2,000 ft /600 m, closing speed control should be included. When tripped (closed), this valve has a continuous exhaust of about 1 GPM / 0.063 L/sec to drain.

  2. DOWNLOADS

    106/206-EF-8837BX Excess Flow (Burst Control) Valve

    For more information on the 106 / 206-EF-8837BX:

    Download the 106/206 EF-8837BX Product Guide

    Download the 106/206-EF-8837BX Operation Guide
