MODELS 106-HC/206-HC

HYDRAULIC CHECK VALVE

KEY FEATURES

  • Drip-tight seat
  • Independently adjustable opening and closing speed controls

Need Assistance?

Fill out the following form and one of our representatives will be in touch with you shortly.

*
*
*
*

  1. PRODUCT OVERVIEW

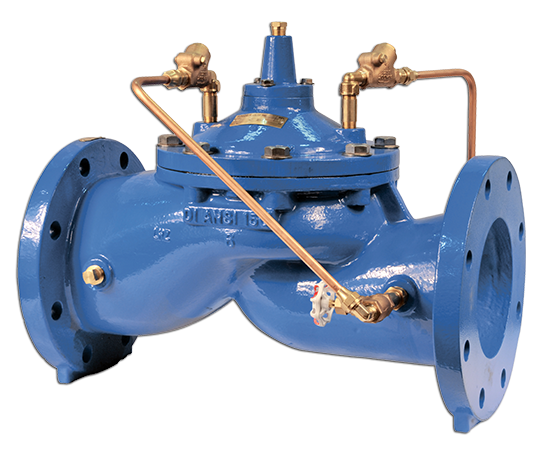

    Models 106/206-HC Hydraulic Check Valve

    The 106-HC and 206-HC hydraulic check valves are based on the 106-PG or 206-PG main valve. The valve functions as a two position valve – either fully open or fully closed.

    The HC allows one way flow only. Under normal forward flow, the valve opens as the higher inlet pressure lifts the inner valve assembly and the fluid in the upper chamber is discharged to the lower pressure, downstream side of the valve.

    When pressure is reversed, the now higher downstream pressure is applied to the upper operating chamber as flow reversal occurs. The diaphragm / inner valve assembly moves down and the valve closes tightly.

  2. DOWNLOADS

    Models 106/206-HC Hydraulic Check Valve

    For more information on the Models 106/206-HC Hydraulic Check Valve:

    Models 106/206-HC Product Guide

    Models 106/206-HC Operation Guide
