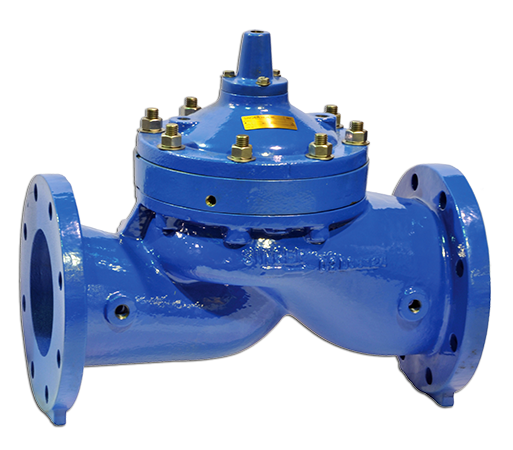

Models 206/S206-PT/PTC

MODELS 206-PT/206-PTC/
S206-PT/S206-PTC

DOUBLE CHAMBER HYDRAULICALLY OPERATED VALVE

KEY FEATURES

  • Positive control, even with low operating pressure
  • Precise positioning
  • Internal drop check included on the PTC model
  • Available in globe and angle style

Need Assistance?

Fill out the following form and one of our representatives will be in touch with you shortly.

*
*
*
*

  1. PRODUCT OVERVIEW

    Models 206/ S206-PT/ PTC Reduced Port, Double Chamber, Hydraulically Operated Valve

    The 206-PT and 206-PTC series control valves are hydraulically operated by introducing or releasing water from the control chambers. PT and PTC valves have two operating chambers which are divided from each other by the diaphragm, and are separated from the flowing media by an adaptor plate.

    206-PTC is an enhancement of the 206-PT and includes an internal drop check feature. This mechanical check provides non-slam closure on reverse flow, independently of the stem position or the pilot operation.

    PT and PTC valves are usually combined with Singer Valve specific purpose pilots and accessories to provide control for a wide range of functions: typically pump control and solenoid control applications.

    Refer to Main Valve Options and Pilots & Accessories to further customize the valve to suit specific applications.

  2. DOWNLOADS

    Models 206 / S206-PT / PTC Reduced Port, Double Chamber, Hydraulically Operated Valve

    For more information on the Models 206/S206-PT/PTC main valve:

    Models 206-PT-PTC Product Guide

    Models 206-PT Operations Guide

    Models 206-PTC Operations Guide
