Model 106-PDV-A-10508A

Pneumatically Operated Remote Control Deluge Valve

KEY FEATURES

  • UL listed to ANSI/UL 260
  • Reliable diaphragm actuated
  • Hydraulically operated design
  • ANSI class 150, 300 flanges and grooved ends
  • Stainless steel fasteners
  • Heat fused red epoxy coating
  • Available in globe style, 3 in/80mm – 8 in/200mm

Need Assistance?

Fill out the following form and one of our representatives will be in touch with you shortly.

*
*
*
*

  1. PRODUCT OVERVIEW

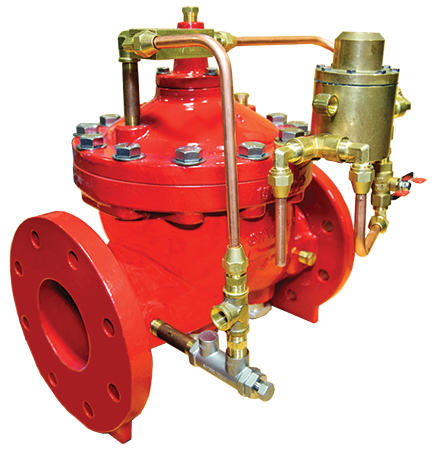

    Model 106-PDV-A-10508A Deluge Valve

    Singer Model 106 PDV-A-10508A Pneumatically Operated Control valve is based on the Singer Model 106 PG-UL Deluge main valve.

    The high capacity relay valve provides on-off position operation. The high capacity relay valve, using an independent air supply, either admits inlet pressure into the main valve operating chamber from the inlet of the main valve or releases pressure from the operating chamber. The pilot system is usually piped to discharge to drain (atmosphere).

  2. DOWNLOADS

    Model 106 PDV-A-10508A Deluge Valve

    For more information on the Model 106 PDV-A-10508A:

    Model 106 PDV 10508A Product Guide

    Model 106PDV 10508A Operation Guide
